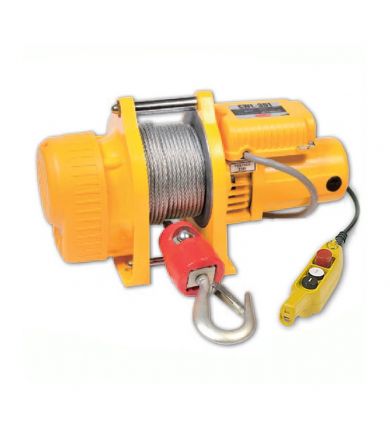

Specification/Part Numbers

• Lifting capacity: 300 kg at wire rope top layer
• Lifting speed: 16 – 25 m/min
• Motor rating IP44:
  1 phase, 220-240V: 2.3 kw x 11 A series wound
• Gear ratio: 110:1
• Maximum lifting height: 58 m
• Braking methods:
  for motor: Electromagnetic
  for gear: Double mechanical ratchets
• Wire rope: 6 mm x 60 m
• Drum length: 147 mm
• Drum dia.: 95 mm
• Drum flange dia.: 190 mm
• Mounting bolts pattern: 197 mm x 94 mm ; 207 mm x 135 mm
• Net weight, kg (standard version) : 40 kg
• Gross weight : 42 kg
• Body dimension, (L x D x H) : 556 x 210 x 270 mm
• Box dimension, (L x D x H) : 630 x 395 x 350 mm

Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

 Lifting Capacity, Lifting Speed and Rope Capacity:

Note:
1.Above performance ratings are based on 50Hz supply.

 Pulling Load Capacity for Various Inclines in kg

Note:
1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
2. Use a snatch block for double line operation, to increase line pull by approximately 85%
3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning
The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated lifting capacity shown is based on the top rope layer on the drum
The rope winding on the drum shall remain 5 wraps from the drum

Accessory:
