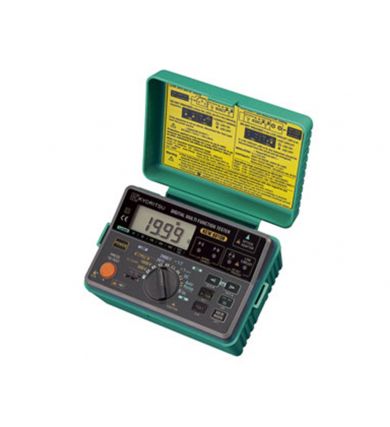

KYORITSU 6010B Digital Multi-Function Tester
Product Rating:
0% of 100
In stock
- Designed to IEC 61010-1, IEC 61557.
- Data Memory : 300 measured results
- Download results to PC by using 8212 data communication adapter through optical RS-232C port.
- Description
- Product Specification
- reviews
KYORITSU 6010B Digital Multi-Function Tester
- Designed to IEC 61010-1, IEC 61557
- Data Memory : 300 measured results.
- Download results to PC by using 8212 data communication adapter through optical RS-232C port.
For Self-Collection Details, please visit our page at : https://www.tchub.sg/faqs.html
What's included in the package
- 1 x KYORITSU 6010B Digital Multi-Function Tester
Technical data
| Continuity Testing | ||
| Measuring Range | 20/200Ω (Auto-Ranging) | |
| Open Circuit Voltage | > 6V | |
| Short Circuit Current | > 200mA | |
| Accuracy | ±(3%rdg + 3dgt) | |
| Insulation Resistance Testing | ||
| Measuring Range | 20/200MΩ (Auto-Ranging) | |
| Test Voltage | 500/1000V | |
| Open Circuit Voltage | +20% - 0% | |
| Rated Current | > 1mA | |
| Accuracy | ± (3%rdg + 3dgt) | |
| Loop Impedance Testing | ||
| Impedance Range | 20/2000Ω | |
| Rated Voltage | 230V + 10% - 15%(50Hz) | |
| Normal Test Current | 20Ω:25A/10ms 2000Ω:15mA/350ms max. |
|
| Accuracy | ±(3%rdg + 8dgt) | |
| RCD Testing | ||
| Test Current (Test Current Duration) |
x1/2, x1 | 10, 30, 100, 300, 500mA (2000ms) |
| Fast | 150mA (50ms) | |
| DC | 10, 30, 100, 300mA (2000ms), 500mA (200ms) | |
| Auto Ramp | Goes up by 10% from 20% to 110% of IΔn. 300ms×10 | |
| Rated Voltage | 230V + 10% - 15% [50Hz] | |
| Accuracy | Test Current | x1/2: -8%-2% |
| x1, FAST: +2%+8% | ||
| DC: ±10% | ||
| Auto Ramp: ±4% | ||
| Trip Time | ±(1%rdg + 3dgt) | |
| Uc Testing | ||
| Measuring Range | 100V | |
| Rated Voltage | 230V + 10% - 15% (50Hz) | |
| Test Current | 5mA at IΔn = 10mA | |
| 15mA at IΔn = 30/100mA | ||
| 150mA at IΔn = 300/500mA | ||
| Accuracy | +5% to +15%rdg±8dgt | |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2 | |
| IEC 61010-2-034, IEC 61557-1, 2, 3, 4, 6, 10, IEC 60529 (IP40) | ||
| Power source | R6/LR6 × 8 | |
| Dimension | 115(L) × 175(W) × 86(D)mm | |
| Weight | Approx. 840g | |
| Accessories | 7122B (Test leads) | |
| KAMP10 (Test lead with IEC connector)*1 | ||
| 8923 (Fuse[0.5A/600V] × 1 (included), 1 (spare) | ||
| 9092 (Cord case) | ||
| 9121 (Shoulder strap) | ||
| Shoulder pad | ||
| Instruction manual | ||
| R6(AA) × 8 | ||
| Optional Accessories | 7133B (Distribution board test leads) | |
| 8212-USB (USB adapter) |
